ESP32 - ESP NOW PROTOCOL

We are going to learn how to:

  • use ESP-NOW protocol
  • exchange data between ESP32 boards

Video Tutorial

you can watch this video tutorial

Hardware Required

2×ESP-WROOM-32 Dev Module
1×Micro USB Cable
1×Breadboard
1×Push button
2×Jumper Wires

What is ESP-Now protocol?

ESP-Now is a protocol developed by Espressif that enables multiple devices (ESP32 and ESP8266) to connect to each other.

ESP-Now is a low power wireless protocol that connects ESP32 and ESP8266 devices without using WiFi. It enables direct wireless connection between two ESP devices without WiFi. The same connection can be established between multiple ESP devices at the same time. In ESP-Now terminology, a device is called peer. Once the devices are paired the connection can be established without a handshake.

This protocol is useful when we want to exchange data between ESP32 devices without using a router. It is the ideal protocol when there is the need to control smart lights connected to ESP devices or when we want to exchange data between two or more peers (i.e sensor readings)

ESP-Now limitations

ESP now has some limitations:

  • payload: the maximum payload size is 250 byte
  • it is supported only by ESP devices

How to connect ESP32 devices

There are several scenarios where the ESP-Now protocol can be used to connect ESP32 and ESP8266 or other ESP devices. Moreover, these devices can play different roles.

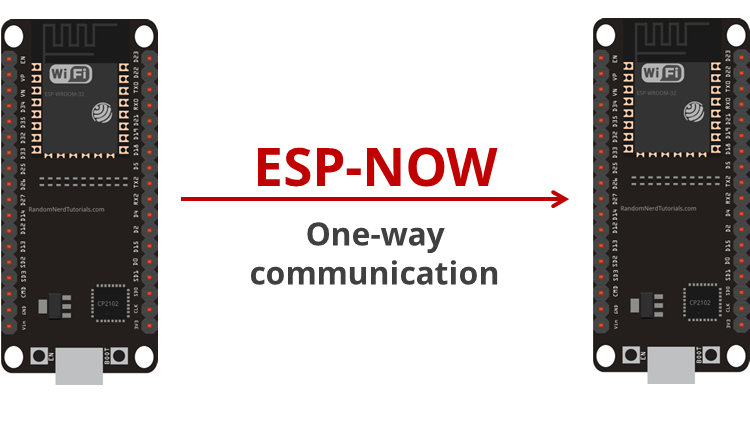

  • One-to-one communication

    In one-to-one communication two ESP devices connect to exchange data.

    ESP32 Button LED Wiring Diagram

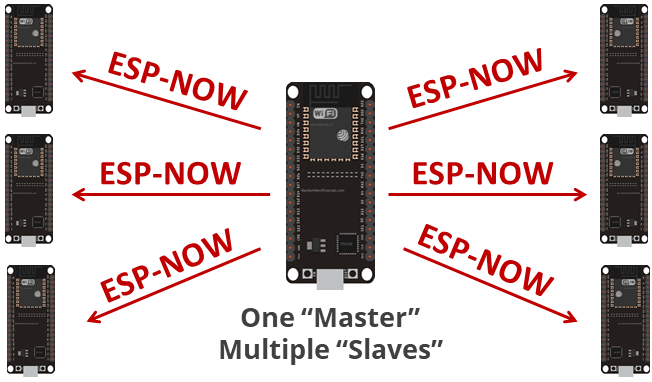

  • One-to-many – Broadcast: Master and slaves

    In one-to-many (Broadcast), ESP32 or ESP8266 acts as a broadcaster sending the same message to all the peers connected.

    ESP32 Button LED Wiring Diagram

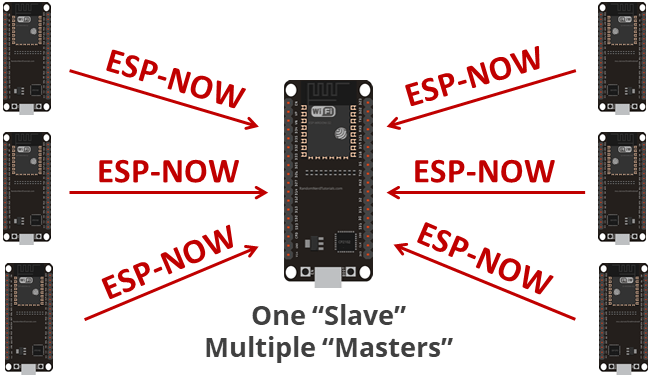

  • Many-to-one: Gateway

    The last scenario, where the ESP-now can be used, is many-to-one configuration. In this scenario, there is a central gateway that collects all the data incoming from the peers connected to it. You can imagine several sensors that send the data acquired to a central collector that will handle somehow this information.

    ESP32 Button LED Wiring Diagram

※ NOTE THAT:

Note: in the ESP-NOW documentation there isn’t such thing as “sender/master” and “receiver/slave”. Every board can be a sender or receiver. However, to keep things clear we’ll use the terms “sender” and “receiver” or “master” and “slave”.

How to use ESP-Now with ESP32

Before going into the details about using ESP-Now to connect ESP32 devices, it is useful to understand the steps to follow to initialize and connect the devices.

The ESP-Now protocol is supported by ESP32 and ESP8266 even if there are some differences in the methods. Anyway, the main steps are valid for both devices and are:

  • Initialize the ESP-Now protocol
  • If we are developing a master or a broadcaster
    • Add peer (if we are developing a master or broadcaster)
    • Define the callback function to know if a message is sent
    • Send a message
  • If we are developing a slave
    • Add a callback function to know when a new message is arriving

One important thing to notice is that the ESP-Now protocol supports only 250 bytes as payload. If you need to send a bigger payload you can consider using MQTT protocol with ESP32.

ESP-Now functions

This a list of the most useful functions to use ESP-Now if we want to exchange data between ESP devices:

esp_now_init() : Initializes ESP-NOW. You must initialize Wi-Fi before initializing ESP-NOW.
esp_now_add_peer() : Call this function to pair a device and pass as an argument the peer MAC address.
esp_now_send() : Send data with ESP-NOW.
esp_now_register_send_cb() : Callback function to know info about the message sent
esp_now_register_rcv_cb() : Callback function invoked when a new message arrives

ESP32 Code

In this tutorial, we are going to discuss how to exchange data between two ESP32 devices in a One-to-one configuration where one of the devices is a master while the other is the slave.

This is very simple scenario, where there is a device that sends data and the other one that receives it. We will have two different codes: one for the sender and the another one for the receiver.

ESP-NOW Sender source code

we will use the example in Arduino IDE go file>Examples>ESP32>ESPNOW>Basic>Slave
Or you can just the code below

Copy

/**
   ESPNOW - Basic communication - Slave
   Date: 26th September 2017
   Author: Arvind Ravulavaru
   Purpose: ESPNow Communication between a Master ESP32 and a Slave ESP32
   Description: This sketch consists of the code for the Slave module.
   Resources: (A bit outdated)
   a. https://espressif.com/sites/default/files/documentation/esp-now_user_guide_en.pdf
   b. http://www.esploradores.com/practica-6-conexion-esp-now/

    << This Device Slave >>

   Flow: Master
   Step 1 : ESPNow Init on Master and set it in STA mode
   Step 2 : Start scanning for Slave ESP32 (we have added a prefix of `slave` to the SSID of slave for an easy setup)
   Step 3 : Once found, add Slave as peer
   Step 4 : Register for send callback
   Step 5 : Start Transmitting data from Master to Slave

   Flow: Slave
   Step 1 : ESPNow Init on Slave
   Step 2 : Update the SSID of Slave with a prefix of `slave`
   Step 3 : Set Slave in AP mode
   Step 4 : Register for receive callback and wait for data
   Step 5 : Once data arrives, print it in the serial monitor

   Note: Master and Slave have been defined to easily understand the setup.
         Based on the ESPNOW API, there is no concept of Master and Slave.
         Any devices can act as master or salve.
*/

#include <esp_now.h>
#include <WiFi.h>

// Global copy of slave
esp_now_peer_info_t slave;
#define CHANNEL 3
#define PRINTSCANRESULTS 0
#define DELETEBEFOREPAIR 0

// Init ESP Now with fallback
void InitESPNow() {
  WiFi.disconnect();
  if (esp_now_init() == ESP_OK) {
    Serial.println("ESPNow Init Success");
  }
  else {
    Serial.println("ESPNow Init Failed");
    // Retry InitESPNow, add a counte and then restart?
    // InitESPNow();
    // or Simply Restart
    ESP.restart();
  }
}

// Scan for slaves in AP mode
void ScanForSlave() {
  int8_t scanResults = WiFi.scanNetworks();
  // reset on each scan
  bool slaveFound = 0;
  memset(&slave, 0, sizeof(slave));

  Serial.println("");
  if (scanResults == 0) {
    Serial.println("No WiFi devices in AP Mode found");
  } else {
    Serial.print("Found "); Serial.print(scanResults); Serial.println(" devices ");
    for (int i = 0; i < scanResults; ++i) {
      // Print SSID and RSSI for each device found
      String SSID = WiFi.SSID(i);
      int32_t RSSI = WiFi.RSSI(i);
      String BSSIDstr = WiFi.BSSIDstr(i);

      if (PRINTSCANRESULTS) {
        Serial.print(i + 1);
        Serial.print(": ");
        Serial.print(SSID);
        Serial.print(" (");
        Serial.print(RSSI);
        Serial.print(")");
        Serial.println("");
      }
      delay(10);
      // Check if the current device starts with `Slave`
      if (SSID.indexOf("Slave") == 0) {
        // SSID of interest
        Serial.println("Found a Slave.");
        Serial.print(i + 1); Serial.print(": "); Serial.print(SSID); Serial.print(" ["); Serial.print(BSSIDstr); Serial.print("]"); Serial.print(" ("); Serial.print(RSSI); Serial.print(")"); Serial.println("");
        // Get BSSID => Mac Address of the Slave
        int mac[6];
        if ( 6 == sscanf(BSSIDstr.c_str(), "%x:%x:%x:%x:%x:%x",  &mac[0], &mac[1], &mac[2], &mac[3], &mac[4], &mac[5] ) ) {
          for (int ii = 0; ii < 6; ++ii ) {
            slave.peer_addr[ii] = (uint8_t) mac[ii];
          }
        }

        slave.channel = CHANNEL; // pick a channel
        slave.encrypt = 0; // no encryption

        slaveFound = 1;
        // we are planning to have only one slave in this example;
        // Hence, break after we find one, to be a bit efficient
        break;
      }
    }
  }

  if (slaveFound) {
    Serial.println("Slave Found, processing..");
  } else {
    Serial.println("Slave Not Found, trying again.");
  }

  // clean up ram
  WiFi.scanDelete();
}

// Check if the slave is already paired with the master.
// If not, pair the slave with master
bool manageSlave() {
  if (slave.channel == CHANNEL) {
    if (DELETEBEFOREPAIR) {
      deletePeer();
    }

    Serial.print("Slave Status: ");
    // check if the peer exists
    bool exists = esp_now_is_peer_exist(slave.peer_addr);
    if ( exists) {
      // Slave already paired.
      Serial.println("Already Paired");
      return true;
    } else {
      // Slave not paired, attempt pair
      esp_err_t addStatus = esp_now_add_peer(&slave);
      if (addStatus == ESP_OK) {
        // Pair success
        Serial.println("Pair success");
        return true;
      } else if (addStatus == ESP_ERR_ESPNOW_NOT_INIT) {
        // How did we get so far!!
        Serial.println("ESPNOW Not Init");
        return false;
      } else if (addStatus == ESP_ERR_ESPNOW_ARG) {
        Serial.println("Invalid Argument");
        return false;
      } else if (addStatus == ESP_ERR_ESPNOW_FULL) {
        Serial.println("Peer list full");
        return false;
      } else if (addStatus == ESP_ERR_ESPNOW_NO_MEM) {
        Serial.println("Out of memory");
        return false;
      } else if (addStatus == ESP_ERR_ESPNOW_EXIST) {
        Serial.println("Peer Exists");
        return true;
      } else {
        Serial.println("Not sure what happened");
        return false;
      }
    }
  } else {
    // No slave found to process
    Serial.println("No Slave found to process");
    return false;
  }
}

void deletePeer() {
  esp_err_t delStatus = esp_now_del_peer(slave.peer_addr);
  Serial.print("Slave Delete Status: ");
  if (delStatus == ESP_OK) {
    // Delete success
    Serial.println("Success");
  } else if (delStatus == ESP_ERR_ESPNOW_NOT_INIT) {
    // How did we get so far!!
    Serial.println("ESPNOW Not Init");
  } else if (delStatus == ESP_ERR_ESPNOW_ARG) {
    Serial.println("Invalid Argument");
  } else if (delStatus == ESP_ERR_ESPNOW_NOT_FOUND) {
    Serial.println("Peer not found.");
  } else {
    Serial.println("Not sure what happened");
  }
}

uint8_t data = 0;
// send data
void sendData() {
  data++;
  const uint8_t *peer_addr = slave.peer_addr;
  Serial.print("Sending: "); Serial.println(data);
  esp_err_t result = esp_now_send(peer_addr, &data, sizeof(data));
  Serial.print("Send Status: ");
  if (result == ESP_OK) {
    Serial.println("Success");
  } else if (result == ESP_ERR_ESPNOW_NOT_INIT) {
    // How did we get so far!!
    Serial.println("ESPNOW not Init.");
  } else if (result == ESP_ERR_ESPNOW_ARG) {
    Serial.println("Invalid Argument");
  } else if (result == ESP_ERR_ESPNOW_INTERNAL) {
    Serial.println("Internal Error");
  } else if (result == ESP_ERR_ESPNOW_NO_MEM) {
    Serial.println("ESP_ERR_ESPNOW_NO_MEM");
  } else if (result == ESP_ERR_ESPNOW_NOT_FOUND) {
    Serial.println("Peer not found.");
  } else {
    Serial.println("Not sure what happened");
  }
}

// callback when data is sent from Master to Slave
void OnDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  char macStr[18];
  snprintf(macStr, sizeof(macStr), "%02x:%02x:%02x:%02x:%02x:%02x",
           mac_addr[0], mac_addr[1], mac_addr[2], mac_addr[3], mac_addr[4], mac_addr[5]);
  Serial.print("Last Packet Sent to: "); Serial.println(macStr);
  Serial.print("Last Packet Send Status: "); Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}

void setup() {
  Serial.begin(115200);
  //Set device in STA mode to begin with
  WiFi.mode(WIFI_STA);
  Serial.println("ESPNow/Basic/Master Example");
  // This is the mac address of the Master in Station Mode
  Serial.print("STA MAC: "); Serial.println(WiFi.macAddress());
  // Init ESPNow with a fallback logic
  InitESPNow();
  // Once ESPNow is successfully Init, we will register for Send CB to
  // get the status of Trasnmitted packet
  esp_now_register_send_cb(OnDataSent);
}

void loop() {
  // In the loop we scan for slave
  ScanForSlave();
  // If Slave is found, it would be populate in `slave` variable
  // We will check if `slave` is defined and then we proceed further
  if (slave.channel == CHANNEL) { // check if slave channel is defined
    // `slave` is defined
    // Add slave as peer if it has not been added already
    bool isPaired = manageSlave();
    if (isPaired) {
      // pair success or already paired
      // Send data to device
      sendData();
    } else {
      // slave pair failed
      Serial.println("Slave pair failed!");
    }
  }
  else {
    // No slave found to process
  }

  // wait for 3seconds to run the logic again
  delay(3000);
}

ESP-NOW Receiver source code

we will use the example in Arduino IDE go file>Examples>ESP32>ESPNOW>Basic>Master
Or you can just the code below

Copy

/**
   ESPNOW - Basic communication - Slave
   Date: 26th September 2017
   Author: Arvind Ravulavaru
   Purpose: ESPNow Communication between a Master ESP32 and a Slave ESP32
   Description: This sketch consists of the code for the Slave module.
   Resources: (A bit outdated)
   a. https://espressif.com/sites/default/files/documentation/esp-now_user_guide_en.pdf
   b. http://www.esploradores.com/practica-6-conexion-esp-now/

    << This Device Slave >>

   Flow: Master
   Step 1 : ESPNow Init on Master and set it in STA mode
   Step 2 : Start scanning for Slave ESP32 (we have added a prefix of `slave` to the SSID of slave for an easy setup)
   Step 3 : Once found, add Slave as peer
   Step 4 : Register for send callback
   Step 5 : Start Transmitting data from Master to Slave

   Flow: Slave
   Step 1 : ESPNow Init on Slave
   Step 2 : Update the SSID of Slave with a prefix of `slave`
   Step 3 : Set Slave in AP mode
   Step 4 : Register for receive callback and wait for data
   Step 5 : Once data arrives, print it in the serial monitor

   Note: Master and Slave have been defined to easily understand the setup.
         Based on the ESPNOW API, there is no concept of Master and Slave.
         Any devices can act as master or salve.
*/

#include <esp_now.h>
#include <WiFi.h>

#define CHANNEL 1

// Init ESP Now with fallback
void InitESPNow() {
  WiFi.disconnect();
  if (esp_now_init() == ESP_OK) {
    Serial.println("ESPNow Init Success");
  }
  else {
    Serial.println("ESPNow Init Failed");
    // Retry InitESPNow, add a counte and then restart?
    // InitESPNow();
    // or Simply Restart
    ESP.restart();
  }
}

// config AP SSID
void configDeviceAP() {
  const char *SSID = "Slave_1";
  bool result = WiFi.softAP(SSID, "Slave_1_Password", CHANNEL, 0);
  if (!result) {
    Serial.println("AP Config failed.");
  } else {
    Serial.println("AP Config Success. Broadcasting with AP: " + String(SSID));
  }
}

void setup() {
  Serial.begin(115200);
  Serial.println("ESPNow/Basic/Slave Example");
  //Set device in AP mode to begin with
  WiFi.mode(WIFI_AP);
  // configure device AP mode
  configDeviceAP();
  // This is the mac address of the Slave in AP Mode
  Serial.print("AP MAC: "); Serial.println(WiFi.softAPmacAddress());
  // Init ESPNow with a fallback logic
  InitESPNow();
  // Once ESPNow is successfully Init, we will register for recv CB to
  // get recv packer info.
  esp_now_register_recv_cb(OnDataRecv);
}

// callback when data is recv from Master
void OnDataRecv(const uint8_t *mac_addr, const uint8_t *data, int data_len) {
  char macStr[18];
  snprintf(macStr, sizeof(macStr), "%02x:%02x:%02x:%02x:%02x:%02x",
           mac_addr[0], mac_addr[1], mac_addr[2], mac_addr[3], mac_addr[4], mac_addr[5]);
  Serial.print("Last Packet Recv from: "); Serial.println(macStr);
  Serial.print("Last Packet Recv Data: "); Serial.println(*data);
  Serial.println("");
}

void loop() {
  // Chill
}

See Also

References

※ NOTE THAT:

Some components works on 3.3v and others works on 5v!

DISCLOSURE
السلام عليكم و رحمة الله و بركاته
مع تمنياتنا بالنجاح و التوفيق
