Potentiometer, NeoPixel RGB

This project instructs you how to use ESP32 to control LED strip using Potentiometer

Video Tutorial

you can watch this video tutorial

Hardware Required

1×ESP-WROOM-32 Dev Module
1×Micro USB Cable
1×rgb LED strip
1×POT resistor
1×Breadboard
n×Jumper Wires

About this project

Introduction to LED Strip

please review our tutorial about LED Strip

Introduction to Potentiometer

The potentiometer (also known as rotary angle sensor) is used to change the settings (e.g. the speaker's volume, room's temperature, lamp's brightness...)

potentiometer Pinout

A potentiometer usually has 3 pins:

  • VCC pin: connect this pin to VCC (5V or 3.3v)
  • GND pin: connect this pin to GND (0V)
  • Output pin: outputs the voltage to ESP32's input pin.

※ NOTE THAT:

The GND pin and VCC pin are interchangeable

How Potentiometer Works

The potentiometer's shaft can be rotated from 0° (closest to GND pin) to an angle (closest to VCC pin), called ANGLE_MAX.

The voltage in the output pin is in direct proportion to the angle position of the shaft, varing from 0 to VCC. The below table shows the relation between the angle and the voltage on the output pin:

Angle Voltage
0v
ANGLE_MAX°VCC
angle°angle° × VCC / ANGLE_MAX°

※ NOTE THAT:

The ANGLE_MAX value is depended on manufacturers.

ESP32 - Rotary Potentiometer

The ESP32's analog input pin converts the voltage (between 0v and 3.3V) into integer values (between 0 and 4095), called ADC value or analog value.

We can connect the potentiometer's output pin to an ESP32's analog input pin, and then read the analog value from the pin.

The analog value from input pin can be rescaled into another value. Let's see the use cases:

  • Rescale the analog value to the potentiometer's angle.
  • Rescale the analog value to the potentiometer's voltage.
  • Rescale the analog value to the the setting value (e.g. the speaker's volume, room's temperature, lamp's brightness...)

Rescale Range

FROM TO
Anglerotated by userANGLE_MAX°
Voltagefrom potentiometer's pin 0V3.3V
ADC valueread by ESP32 04095
Setting valueconverted by ESP32 VALUE_MINVALUE_MAX

Wiring Diagram

Breadboard Connections with LED Strip

ESP32 Button LED Wiring Diagram

Image is developed using Fritzing. Click to enlarge image

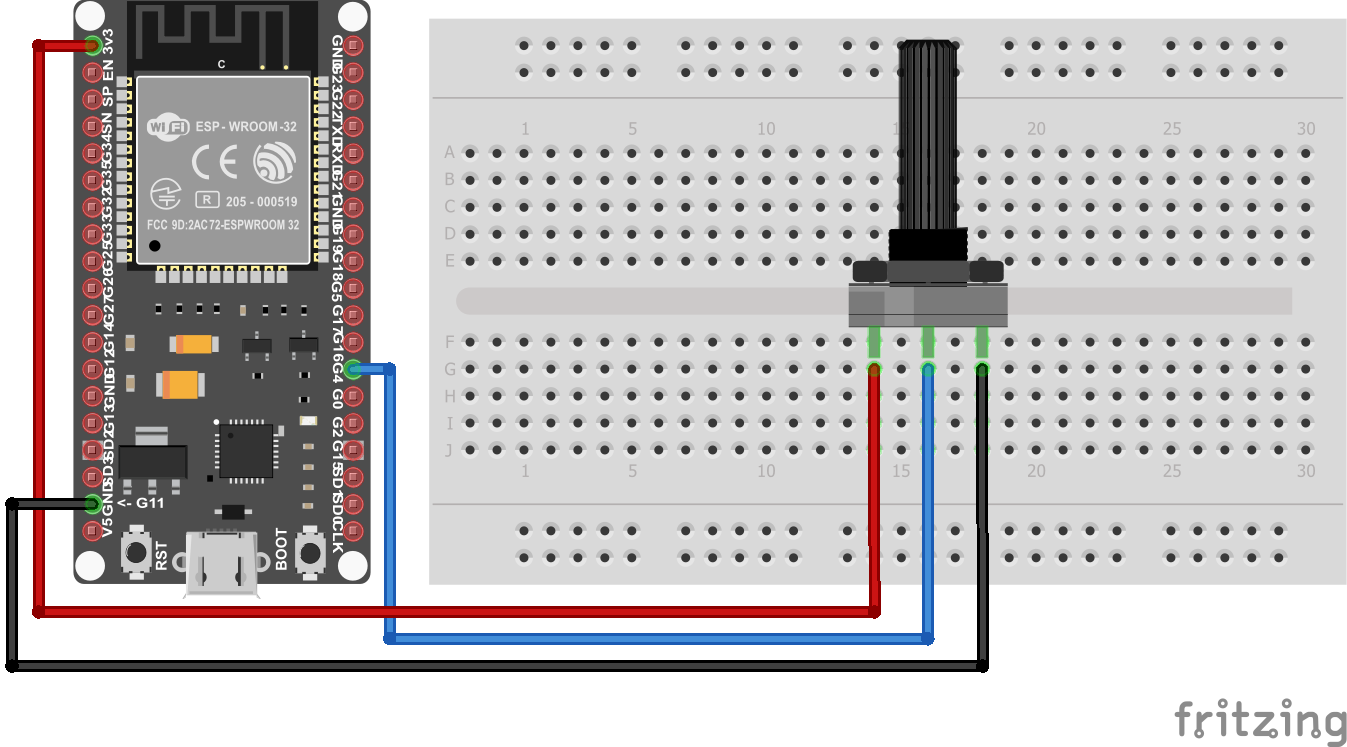

Breadboard Connections with potentiometer

ESP32 Button LED Wiring Diagram

Image is developed using Fritzing. Click to enlarge image

click to see ESP32 pin out

ESP32 Code

Copy

#include <Adafruit_NeoPixel.h>

#define potPIN           4

#define NeopixelPIN      15
#define N_LEDS 60

float potValue;
int ledCount;

Adafruit_NeoPixel strip = Adafruit_NeoPixel(N_LEDS, NeopixelPIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  pinMode(potPIN,INPUT);
  Serial.begin(9600);
}

void loop() {
  potValue = analogRead(potPIN);
  ledCount = floatMap(potValue, 0, 4095, 1, 60);
  uint32_t c = strip.Color(255, 0, 0);

  for(uint16_t i=0; i<ledCount; i++) {
      strip.setPixelColor(i  , c); // Draw new pixel
      strip.show();
      //delay(25);
  }
  for(uint16_t i=0; i<60-ledCount; i++) {
      strip.setPixelColor(60-i, 0); // Erase pixel a few steps back
      strip.show();
      //delay(25);
  }
}


float floatMap(float x, float in_min, float in_max, float out_min, float out_max) {
  return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}

Quick Steps

  • power up your board
  • Open Arduino IDE
  • Select the right board
  • Select the right port
  • Copy the above code and open with Arduino IDE
  • Click Upload button on Arduino IDE to upload code to ESP32
  • Arduino IDE Upload Code
  • Press and keep pressing the button several seconds
  • See the changes you made

Book Tutorial

We are considering to make the book tutorials. If you think the book tutorials are essential, you can download it. download book

References

※ NOTE THAT:

Some components works on 3.3v and others works on 5v!
