ESP32 - Ultrasonic - OLED

Video Tutorial

you can watch this video tutorial

Hardware Required

Introduction to RFID Module

The ultrasonic sensor HC-SR04 is used to measure the distance from the sensor to an object by using ultrasonic waves.

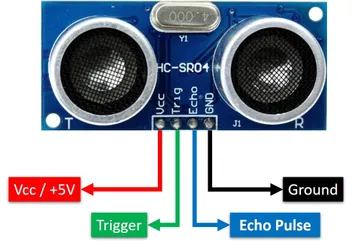

Pinout

The ultrasonic sensor HC-SR04 includes four pins:

• GND pin:connect this pin to GND (0V)
• VCC pin: connect this pin to VCC (5V)
• TRIG pin: this pin receives a control pulse from ESP32.
• ECHO pin: this pin generates a pulse corresponding to the measured distance to ESP32.

How it works

• 1- Micro-controller: generates a 10-microsecond pulse on the TRIG pin.
• 2- The ultrasonic sensor automatically emits the ultrasonic waves.
• 3- The ultrasonic wave is reflected after hitting an obstacle.
• 4- The ultrasonic sensor:

  • Detects the reflected ultrasonic wave.
  • Measures the travel time of the ultrasonic wave.
• 5- Ultrasonic sensor: generates a pulse to the ECHO pin. The duration of the pulse is equal to the travel time of the ultrasonic wave.
• 6- Micro-controller measures the pulse duration in the ECHO pin, and then calculate the distance between sensor and obstacle.

How to Get Distance From Ultrasonic Sensor

To get distance from the ultrasonic sensor, we only need to do two steps (1 and 6 on How It Works part)

• Generates a 10-microsecond pulse on TRIG pin
• Measures the pulse duration in ECHO pin, and then calculate the distance between sensor and obstacle

Distance Calculation

We have:

• The travel time of the ultrasonic wave (µs):
  travel_time = pulse_duration
• The speed of the ultrasonic wave:
  speed = SPEED_OF_SOUND = 340 m/s = 0.034 cm/µs

So:

• The travel distance of the ultrasonic wave (cm):
  travel_distance = speed x travel_time = 0.034 x pulse_duration
• The distance between sensor and obstacle (cm):
  distance = travel_distance / 2 = 0.034 x pulse_duration / 2 = 0.017 x pulse_duration

How To Program Ultrasonic Sensor

• Generate a 10-microsecond pulse in ESP32's pin by using digitalWrite() and delayMicroseconds() functions. For example, pin GIOP23:

digitalWrite(23, HIGH);
delayMicroseconds(10);
digitalWrite(23, LOW);

• Measures the pulse duration (µs) in ESP32's pin by using pulseIn() function. For example, pin GIOP22:

duration_us = pulseIn(22, HIGH);

• Calculate distance (cm):

distance_cm = 0.017 * duration_us;

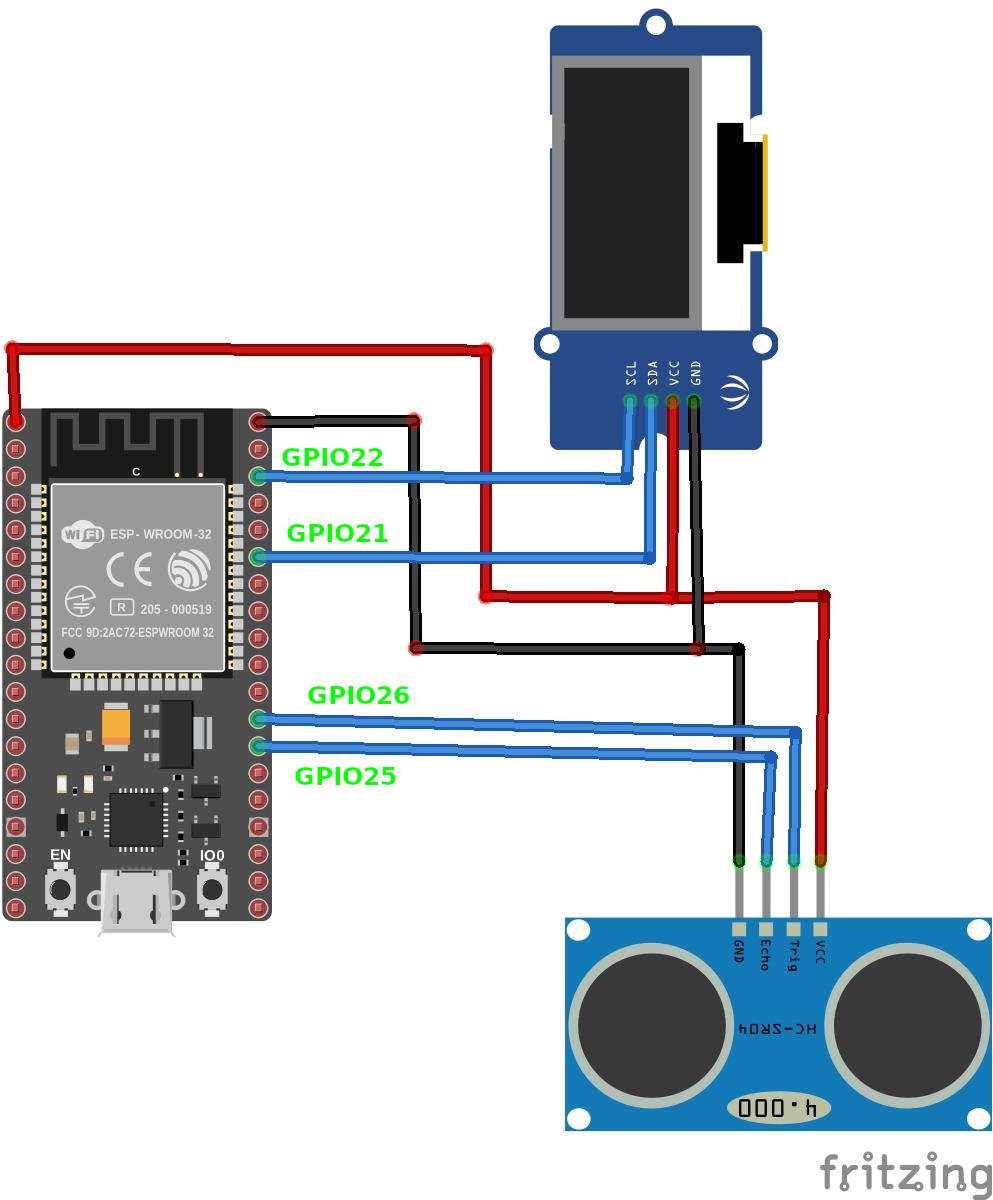

Wiring Diagram

Breadboard Connections

Image is developed using Fritzing. Click to enlarge image

click to see ESP32 pin out

ESP32 Code

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels

#define OLED_RESET     -1 // Reset pin # (or -1 if sharing Arduino reset pin)
#define SCREEN_ADDRESS 0x3C /// See datasheet for Address; 0x3D for 128x64, 0x3C for 128x32
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

#define TRIG_PIN 26 // ESP32 pin GIOP26 connected to Ultrasonic Sensor's TRIG pin
#define ECHO_PIN 25 // ESP32 pin GIOP25 connected to Ultrasonic Sensor's ECHO pin
float duration_us, distance_cm;


void setup() {
  Serial.begin(9600);

  // SSD1306_SWITCHCAPVCC = generate display voltage from 3.3V internally
  if(!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println(F("SSD1306 allocation failed"));
    for(;;); // Don't proceed, loop forever
  }

  // Show initial display buffer contents on the screen --
  // the library initializes this with an Adafruit splash screen.
  display.display();
  delay(2000); // Pause for 2 seconds

  display.clearDisplay();                 // clear display
  display.setTextSize(2);                 // set text size
  display.setTextColor(WHITE, BLACK);     // set text color

  pinMode(TRIG_PIN, OUTPUT); // config trigger pin to output mode
  pinMode(ECHO_PIN, INPUT);  // config echo pin to input mode

}

void loop() {

  // generate 10-microsecond pulse to TRIG pin
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  // measure duration of pulse from ECHO pin
  duration_us = pulseIn(ECHO_PIN, HIGH);

  // calculate the distance
  distance_cm = 0.017 * duration_us;

  display.setTextSize(2);
  display.setCursor(10, 1);                     // set position to display
  display.println("Distance: ");    // set text
  display.setTextSize(3);
  display.setCursor(10, 30);
  display.println(distance_cm);
  display.display();                         // display on OLED

  delay(500);

}
