ESP32 - OTA - RTOS

We are going to make a project that:

  • Update the firmware wirelessly (OTA).
  • Have a three tasks woring in parrallel (RTOS).

Video Tutorial

you can watch this video tutorial

Hardware Required

1×ESP-WROOM-32 Dev Module
1×Micro USB Cable
3×LED
3×220 ohm resistor
1×Breadboard
7×Jumper Wires

About this project

We will make three LEDs blinking in different timing and will be able to apdate this code wirelessly

Review Topics

Please review this topics to get a better understand of this project

  • Basic OTA project. go to this link
  • Basic RTOS project. go to this link

Wiring Diagram

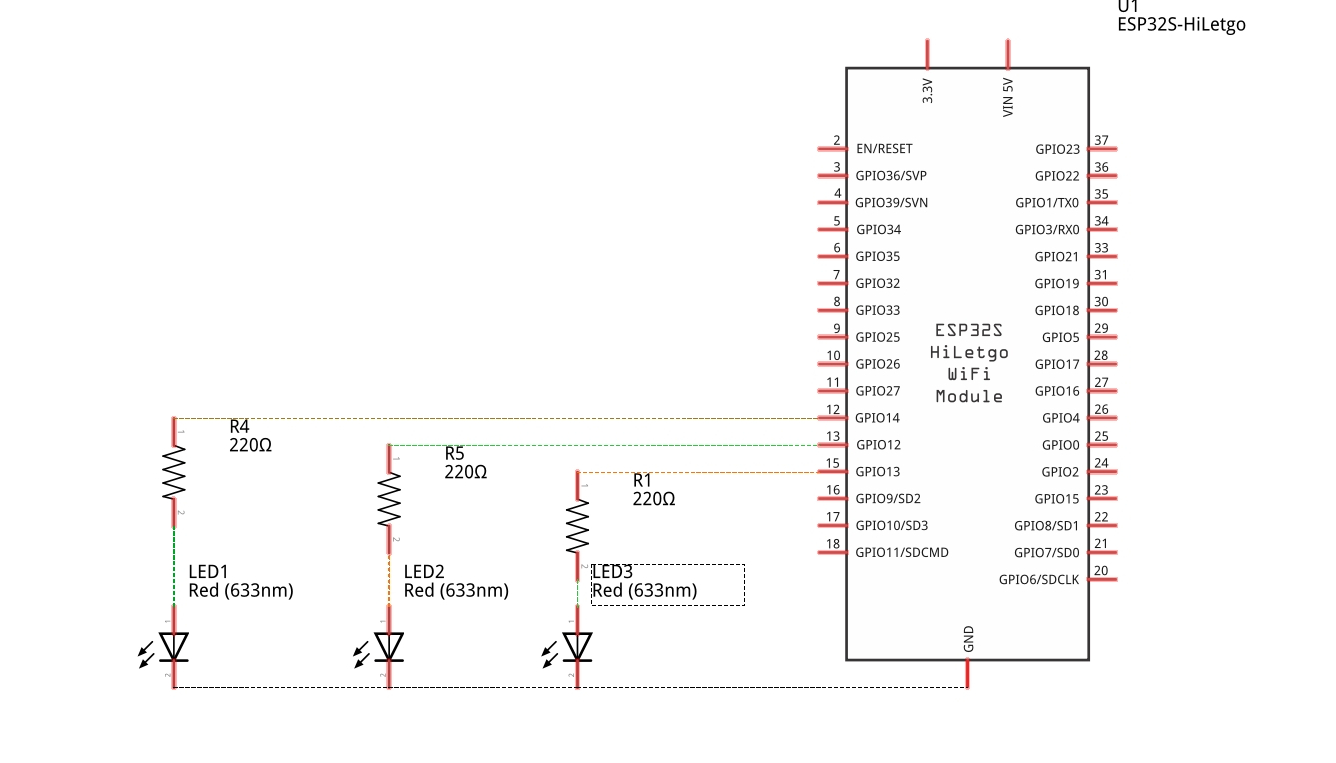

Schematic Diagram

ESP32 Button LED Wiring Diagram

Image is developed using Fritzing. Click to enlarge image

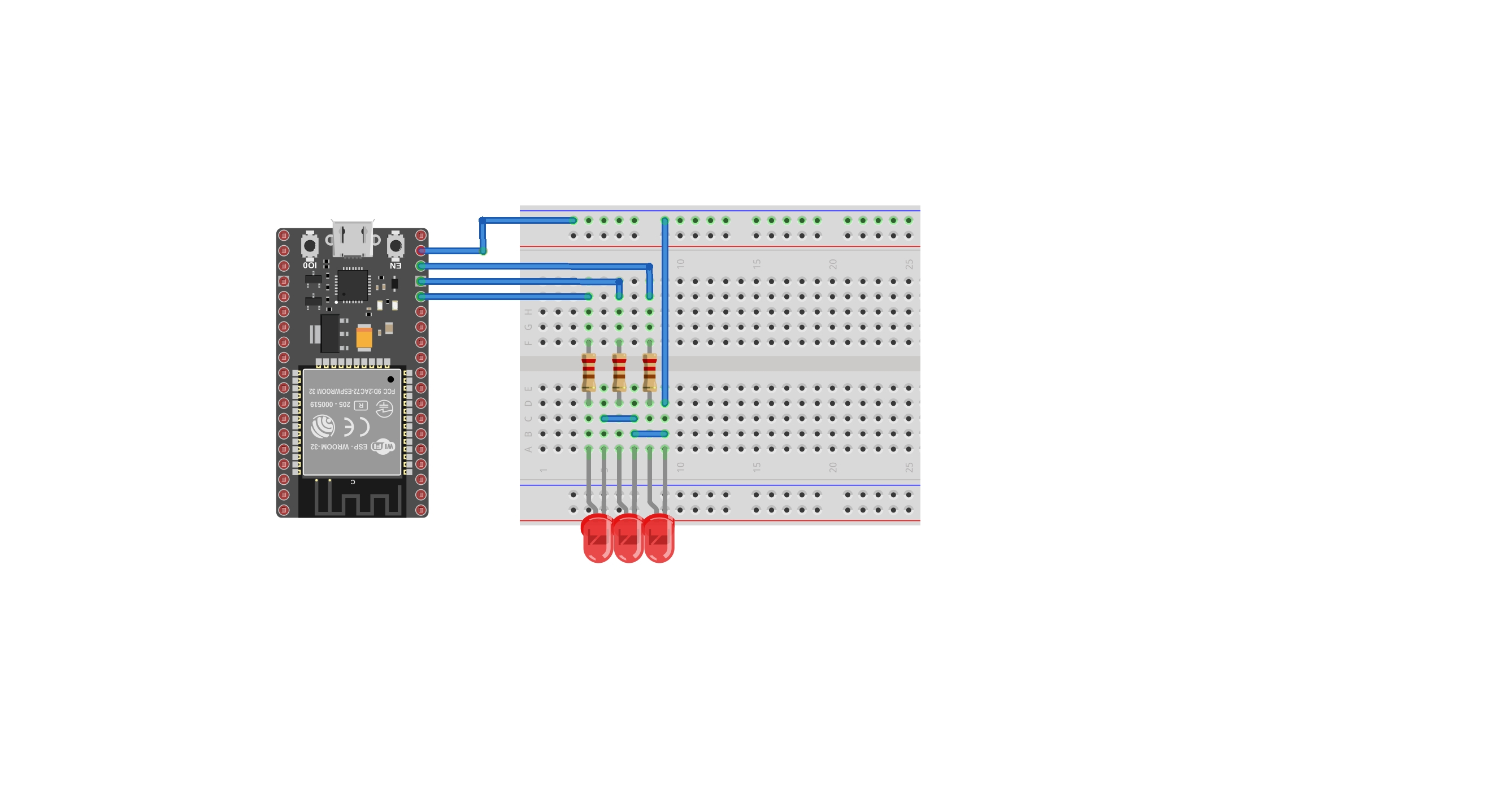

Breadboard Connections

ESP32 Button LED Wiring Diagram

Image is developed using Fritzing. Click to enlarge image

click to see ESP32 pin out

ESP32 Code

Copy

/*
*
* Created by Mohamed Ahraf
*
* This example code is in the public domain
*
*/
                                                // Include required libraries
#include <WiFi.h>
#include <ESPmDNS.h>
#include <WiFiUdp.h>
#include <ArduinoOTA.h>
#if CONFIG_FREERTOS_UNICORE
#define ARDUINO_RUNNING_CORE 0
#else
#define ARDUINO_RUNNING_CORE 1
#endif

void TaskBlink( void *pvParameters );
void TaskBlink2( void *pvParameters );
void TaskBlinkBuiltIn( void *pvParameters );

const char* ssid = "WE_87B9D0";
const char* password = "jae05161";

void setup() {
                                                // Now set up three tasks to run independently.
  xTaskCreatePinnedToCore(
    TaskBlink1
        ,  "TaskBlink1"                             // A name just for humans
        ,  1024                                     // This stack size can be checked & adjusted by reading the Stack Highwater
        ,  NULL
        ,  2                                        // Priority, with 3 (configMAX_PRIORITIES - 1) being the highest, and 0 being the lowest.
        ,  NULL
        ,  ARDUINO_RUNNING_CORE);

        xTaskCreatePinnedToCore(
        TaskBlink2
        ,  "TaskBlink2"                             // A name just for humans
        ,  1024                                     // This stack size can be checked & adjusted by reading the Stack Highwater
        ,  NULL
        ,  2                                        // Priority, with 3 (configMAX_PRIORITIES - 1) being the highest, and 0 being the lowest.
        ,  NULL
        ,  ARDUINO_RUNNING_CORE);

xTaskCreatePinnedToCore(
    TaskBlink3
        ,  "TaskBlink3"                             // A name just for humans
        ,  1024                                     // This stack size can be checked & adjusted by reading the Stack Highwater
        ,  NULL
        ,  2                                        // Priority, with 3 (configMAX_PRIORITIES - 1) being the highest, and 0 being the lowest.
        ,  NULL
        ,  ARDUINO_RUNNING_CORE);

Serial.begin(115200);
Serial.println("Booting");
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
while (WiFi.waitForConnectResult() != WL_CONNECTED) {
Serial.println("Connection Failed! Rebooting...");
        delay(5000);
        ESP.restart();
      }
      ArduinoOTA.setHostname("myesp32");            //Hostname defaults to esp3232-[MAC]
      ArduinoOTA                                    //Set up the OTA configuration
        .onStart([]() {
          String type;
          if (ArduinoOTA.getCommand() == U_FLASH)
            type = "sketch";
          else
            type = "filesystem";
          Serial.println("Start updating " + type);
        })
        .onEnd([]() {
          Serial.println("\nEnd");
        })
        .onProgress([](unsigned int progress, unsigned int total) {
          Serial.printf("Progress: %u%%\r", (progress / (total / 100)));
        })
        .onError([](ota_error_t error) {
          Serial.printf("Error[%u]: ", error);
          if (error == OTA_AUTH_ERROR) Serial.println("Auth Failed");
          else if (error == OTA_BEGIN_ERROR) Serial.println("Begin Failed");
          else if (error == OTA_CONNECT_ERROR) Serial.println("Connect Failed");
          else if (error == OTA_RECEIVE_ERROR) Serial.println("Receive Failed");
          else if (error == OTA_END_ERROR) Serial.println("End Failed");
        });

      ArduinoOTA.begin();
      Serial.println("Ready");
      Serial.print("IP address: ");
      Serial.println(WiFi.localIP());
}

void loop() {
      ArduinoOTA.handle();                          //Check for new update
}

void TaskBlink1(void *pvParameters)             // This is a task.
{
                                                    /*
                                                    Blink
                                                    Turns on an LED on for one second,
                                                     then off for one second,
                                                     repeatedly.
                                                    */

pinMode(13, OUTPUT);                          // initialize digital LED_BUILTIN on pin 13 as an output.

      for (;;)                                      // A Task shall never return or exit.
      {
        digitalWrite(13, HIGH);                     // turn the LED on (HIGH is the voltage level)
        vTaskDelay(100);                            // one tick delay (15ms) in between reads for stability
        digitalWrite(13, LOW);                      // turn the LED off by making the voltage LOW
        vTaskDelay(100);                            // one tick delay (15ms) in between reads for stability
      }
    }

void TaskBlink2(void *pvParameters)             // This is a task.
{
      pinMode(12, OUTPUT);                          // initialize digital LED_BUILTIN on pin 13 as an output.

      for (;;)                                      // A Task shall never return or exit.
      {
        digitalWrite(12, HIGH);                     // turn the LED on (HIGH is the voltage level)
        vTaskDelay(200);                            // one tick delay (15ms) in between reads for stability
        digitalWrite(12, LOW);                      // turn the LED off by making the voltage LOW
        vTaskDelay(200);                            // one tick delay (15ms) in between reads for stability
      }
}

void TaskBlink3(void *pvParameters)             // This is a task.
{
      pinMode(14, OUTPUT);                          // initialize digital LED_BUILTIN on pin 13 as an output.
      for (;;)                                      // A Task shall never return or exit.
      {
        digitalWrite(14, HIGH);                     // turn the LED on (HIGH is the voltage level)
        vTaskDelay(300);                            // one tick delay (15ms) in between reads for stability
        digitalWrite(14, LOW);                      // turn the LED off by making the voltage LOW
        vTaskDelay(300);                            // one tick delay (15ms) in between reads for stability
      }
}

※ NOTE THAT:

At the first time you upload an OTA firmware you need to upload it via usb, then each time you want to change the code you can upload it wirelessly like these following steps.

Quick Steps

  • power up your board
  • Open Arduino IDE, select the right board
  • Select the right port from Tools->port->Network ports
  • Copy the above code and open with Arduino IDE
  • Click Upload button on Arduino IDE to upload code to ESP32
  • Arduino IDE Upload Code
  • Press and keep pressing the button several seconds
  • See the changes you made

Code Explanation

Read the line-by-line explanation in comment lines of source code!
